Quick answer: Eaton contactors switch motor and power circuits on and off from a control signal. This guide covers 10 models, from the compact XTCD9-11 (9A, AC-3) to the DILM150(RDC24), a 75 kW contactor with a 24-27V DC coil. Choose by motor power or current (AC-3 rating), coil voltage, auxiliary contacts and the protection you pair it with. Shansen Traders, an authorized Eaton channel partner in Coimbatore, lists all ten on KovaiGuide.
If you run pumps, compressors, fans or conveyors, you already depend on contactors. The challenge is choosing the right one from model codes like XTCD40-11 or DILM150(RDC24). This guide explains what each Eaton contactor is rated for, which coil voltage to pick, and how a contactor fits with your MCCB and overload protection. It compares ten Eaton contactors available through Shansen Traders in Coimbatore.
What Is a Contactor and What Does It Do?
A contactor is an electrically operated switch. When its coil is energised, it pulls the power contacts closed and the load starts. When the coil is de-energised, the contacts open and the load stops. Contactors are built for frequent switching, which is why they start and stop motors, pumps and compressors every day. They give you three things:
- Remote switching: a push-button, timer, PLC or float switch controls the coil, while the contacts carry the heavy motor current.
- Frequent operation: contactors are designed for many thousands of switching operations.
- Safer control circuits: a low-voltage control signal (for example 24V DC or 230V AC) switches the main power circuit.

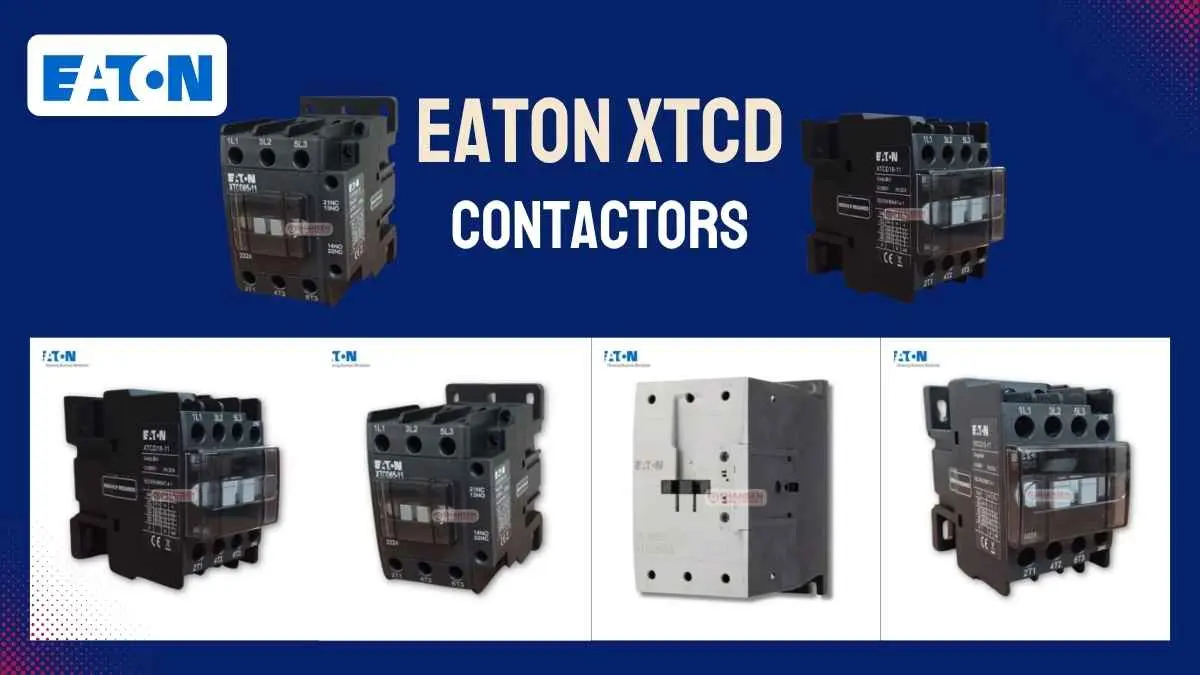

Eaton Contactor Models at a Glance
All ten contactors below are 3-pole models.
| Model / SKU | Rating | Key features | Best for |
|---|---|---|---|
| XTCD9-11 | 9A AC-3 (20A thermal) | 690V, 8 kV impulse, DIN-rail mount | Small motors, compact panels |
| XTCD12-11 | 20A thermal (Ith), AC-3 duty | 1NO+1NC built-in, 8 kV impulse | Small motors, control panels |
| XTCD18-11 | 18A at 400V | 24V or 110-230V coil options, IP20 | Small pumps and fans |
| XTCD25-11 (CMD00537) | 25A, 11 kW at 380V | 230V AC coil, 1NO+1NC built-in | Pumps, compressors, MCC panels |
| XTCD032-11 | 32A AC-3 | 690V, 50A thermal current | Medium motors |
| XTCD40-11 | 40A AC-3 | AC-3 and AC-4 duty, 50 kA short-circuit withstand | Medium motors, AC-3 and AC-4 duty |
| XTCD65-11 (CMD00577) | 65A at 400V | 230V AC coil, 1NO+1NC built-in | Larger motors |
| XTCD80-11 | 80A at 400V (about 37 kW) | Coil options from 24V to 400V AC | Larger motors, MCC panels |
| XTCD95-11 (CMD00593) | 95A at 400V (about 45 kW) | 230V AC coil, DIN-rail or panel mount | Heavy motors, MCC panels |
| DILM150(RDC24) (239591) | 75 kW at 380-400V | 24-27V DC coil, 10 million mechanical operations | Heavy motors, 24V DC control panels |
The 10 Eaton Contactors in Detail
Compact contactors for small motors (9A to 25A)
- Rating: AC-3 up to 9A, 20A thermal current (Ith)
- Voltage and insulation: 690V rated voltage, 8 kV impulse withstand
- Mounting: DIN-rail mountable
- Standards: IEC/EN 60947-4-1, CE marked
- Rating: 20A continuous current (Ith), AC-3 category for motor starting and stopping
- Auxiliary contacts: 1NO+1NC built in
- Insulation: 8 kV impulse withstand (Uimp)
- Standard: IEC/EN 60947-4-1
- Rating: 18A at 400V, 3-pole
- Voltage and insulation: 690V, 8 kV impulse withstand
- Protection: IP20, damp-heat rated
- Auxiliary contacts and coils: integrated 1NO+1NC, coil options 24V and 110-230V
- Mounting: DIN-rail friendly
Eaton XTCD25-11 AC Contactor (SKU CMD00537)
- Rating: 25A, 11 kW at 380V
- Coil: 230V AC, 50/60 Hz
- Auxiliary contacts: built-in 1NO+1NC
- Build: compact for panels and MCCs, CE certified
Medium contactors for pumps and compressors (32A to 65A)
Eaton XTCD032-11 Power Contactor
- Rating: 32A operating current (AC-3), 50A thermal current
- Voltage and insulation: 690V insulation voltage, 8 kV impulse withstand
- Standards: IEC/EN 60947-4-1, CE certified
Eaton XTCD40-11 3-Pole Contactor
- Rating: 40A (AC-3) at 220/380V, 60A thermal current
- Duty: AC-3 and AC-4
- Voltage and insulation: 690V, 8 kV impulse withstand
- Short-circuit withstand: up to 50 kA, 50/60 Hz
Eaton XTCD65-11 3-Pole Power Contactor (SKU CMD00577)
- Rating: 65A (AC-3) at 400V
- Coil: 230V AC
- Auxiliary contacts: built-in 1NO+1NC
- Voltage and temperature: 690V insulation, 8 kV surge withstand, -25°C to +60°C
Large contactors for heavy motors (80A to 75 kW)
Eaton XTCD80-11 Power Contactor
- Rating: 80A (AC-3) at 400V, motor control up to about 37 kW at 380V
- Coil options: 24V to 400V AC
- Auxiliary contacts: built-in 1NO+1NC
- Voltage and standards: 690V insulation, 8 kV impulse withstand, IEC/EN 60947-4-1, CCC, CE
Eaton XTCD95-11 3-Pole AC Contactor (SKU CMD00593)
- Rating: 95A (AC-3) at 400V, supports motors up to about 45 kW
- Coil: 230V AC, voltage range 24-400V AC
- Auxiliary contacts: built-in 1NO+1NC
- Mounting and standards: DIN-rail or panel mount, IEC 60947, CE, CCC
Eaton Moeller DILM150(RDC24) 3-Pole 75 kW Contactor (SKU 239591)
- Rating: 75 kW at 380-400V, categories AC-3, AC-4 and AC-1
- Coil: 24-27V DC
- Life and protection: 10 million mechanical operations, built-in suppressor circuit
- Build: screw terminals, IP00, frame FS4
- Approvals: CE, CSA, VDE, UL, suitable for IE3 motors
Why a DC coil helps: a 24-27V DC coil, as on the DILM150(RDC24), can be driven straight from a PLC output or a 24V control supply. The built-in suppressor circuit protects the control electronics from voltage spikes when the coil switches off.
How to Choose the Right Eaton Contactor in 6 Steps
Step 1: Match the rating to your motor
Check the motor’s full-load current or kW rating at your supply voltage, then choose a contactor whose AC-3 rating is above it. For example, the XTCD25-11 is listed at 11 kW at 380V, and the XTCD95-11 at about 45 kW.
Step 2: Pick the utilisation category
AC-1 is for resistive loads such as heaters. AC-3 is for starting and stopping squirrel-cage motors. AC-4 is for harsher duty such as inching and plugging. If the motor is inched or plugged (reversed while it is still running), choose a contactor rated for AC-4, such as the XTCD40-11 or DILM150(RDC24).
Step 3: Choose the coil voltage and type
Match the coil to your control supply. A 230V AC coil suits standard push-button control. A 24V DC coil suits PLC-driven panels. Several models here offer coil options, so quote the exact coil voltage when you enquire.
Step 4: Check auxiliary contacts
Most of the XTCD models listed here have 1NO+1NC auxiliary contacts built in. These are used for latching (hold-in) circuits and status signals. Confirm you have enough for your control logic.
Step 5: Pair it with protection
A contactor switches but does not protect. Always pair it with a short-circuit protective device (an MCCB or MCB) and an overload relay. Read our Eaton MCCB guide to size the breaker.
Step 6: Consider mounting and environment
Check whether you need DIN-rail or panel mounting, the ambient temperature (the XTCD65-11 is listed for -25°C to +60°C), and the protection degree. IP20 means finger-safe inside a panel, and IP00 on the DILM150 means it must be mounted inside a protected enclosure.
Contactor vs MCCB: What Is the Difference?
A contactor is built to switch a load on and off many times a day under normal conditions. An MCCB is built to protect: it trips on overload and short circuit and isolates the circuit, but it is not meant for frequent switching. In a motor feeder they work together: the MCCB protects the circuit, the contactor switches the motor and an overload relay protects the motor.
Where to Buy Eaton Contactors in Coimbatore
Shansen Traders is an authorized channel partner for Eaton electrical products in Coimbatore, and all ten contactors in this guide are listed on its KovaiGuide page.
- Business: Shansen Traders, Coimbatore
- Address: 216, Addis Street, Coimbatore Press Club Building, Avinashi Road, Coimbatore 641018
- WhatsApp and phone: +91 94875 33195
- Email: info@shansen.in
- Listing: Shansen Traders on KovaiGuide
An honest note: specifications in this guide come from supplier product information and can vary by variant, coil voltage and auxiliary configuration. Always confirm the final ratings against the official Eaton datasheet for your exact SKU, and have a qualified electrician install and commission the contactor.
Buyer’s Checklist: Are You Ready to Order a Contactor?
- I know my motor’s full-load current or kW rating and supply voltage.
- I have chosen the utilisation category (AC-1, AC-3 or AC-4).
- I know my control supply and the coil voltage I need (for example 230V AC or 24V DC).
- I have counted the auxiliary contacts my control circuit needs.
- I have an MCCB or MCB and an overload relay for protection.
- I know whether I need DIN-rail or panel mounting.
- I have noted the exact SKU, for example XTCD40-11.
- I have checked the ambient temperature and enclosure conditions.
- I have a qualified electrician lined up for installation and testing.
Get a Quote for Eaton Contactors
Send the SKU, coil voltage and quantity to Shansen Traders on WhatsApp for pricing and availability. You can also open the listing to see all ten contactors, the Eaton MCCBs and the full Eaton range.
Ready to order?
Frequently Asked Questions About Eaton Contactors
1. What is a contactor used for?
A contactor is an electrically operated switch used to start and stop motors, pumps, compressors, fans, heaters and other power loads from a control signal. It is built for frequent switching.
2. What is the difference between a contactor and an MCCB?
A contactor switches a load on and off during normal operation, but it does not protect the circuit. An MCCB protects against overload and short circuit and isolates the circuit, but it is not designed for frequent switching. A motor feeder normally uses both, plus an overload relay.
3. What does AC-3 mean on a contactor?
AC-3 is the utilisation category for starting and stopping squirrel-cage induction motors. A contactor’s AC-3 rating tells you the motor current or power it can switch, so it is the main rating to match to your motor.
4. How do I choose the coil voltage for an Eaton contactor?
Match the coil to your control supply. Use a 230V AC coil for standard AC control circuits, and a 24V DC coil (as on the DILM150(RDC24)) when a PLC or 24V DC supply drives the contactor. Quote the exact coil voltage when you order.
5. Which Eaton contactor suits an 11 kW motor?
The Eaton XTCD25-11 (SKU CMD00537) is listed as a 25A contactor rated 11 kW at 380V. Always confirm against the motor’s full-load current and the Eaton datasheet before ordering.
6. Which Eaton contactor is for motors above 45 kW?
The Eaton Moeller DILM150(RDC24) (SKU 239591) is a 3-pole contactor rated 75 kW at 380-400V, with a 24-27V DC coil and categories AC-3, AC-4 and AC-1.
7. Where can I buy Eaton contactors in Coimbatore?
Shansen Traders, an authorized Eaton channel partner, lists ten Eaton contactors on KovaiGuide. Open the Shansen Traders listing for contact details and send an enquiry quoting the SKU.
8. How do I get a price quote for an Eaton contactor?
Message Shansen Traders on WhatsApp at +91 94875 33195 with the SKU, coil voltage and quantity. You can also email info@shansen.in.
Key Takeaways
- A contactor switches motor circuits remotely, but it does not protect them. Pair it with an MCCB and an overload relay.
- Match the contactor’s AC-3 rating to the motor, then check the coil voltage, auxiliary contacts and mounting.
- XTCD9-11 to XTCD25-11 suit small motors, XTCD032-11 to XTCD65-11 medium motors, and XTCD80-11 and XTCD95-11 larger motors.
- DILM150(RDC24) handles 75 kW at 380-400V and has a 24-27V DC coil for PLC-driven panels.
- Always confirm exact ratings in the Eaton datasheet before ordering.
